42dB 1MHz-800MHz Linear power Amplifier

Features:

• Power supply voltage: 12V
• Working current: 300ma-400mA, power adapter recommended 500mA or more
• size : 55x40x30 (LxWxH),
• Weight: 56 g
• Amplifier Type: Class A linear amplifier
• Input power: -20 ~ 3dBm
• Output power: 33dBm (2W) Max
• Maximum gain: 42dB

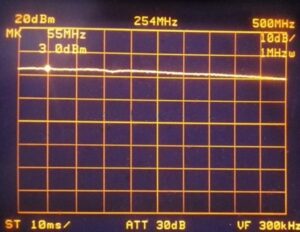

  • 55MHz at the output 33dBm (2W), gain 40dB
  • 100MHz at the output of 32dBm (1.6W)
  • 500MHz at the output 30dBm (1W), gain 30dB
  • 600MHz at the output of 29.2dBm (0.83W
  • 700MHz at the output of 28.6dBm (0.63W
  • 800MHz at the output of 27.5dBm (0.56W
  • 900MHz at the output of 26dBm (0.4W
  • 500MHz test (input 0dBm, output 30dBm that is 1w)
